An industry construction workshop frame is a key component of a workshop building, providing the structural support and stability necessary for the facility. When designing an industry construction workshop frame, several factors should be considered:
Structural System: Select an appropriate structural system for the workshop frame. Common options include portal frames, rigid frames, or truss systems. Each system has its advantages and is suitable for different span requirements, load capacities, and architectural preferences.
Material Selection: Steel is a popular choice for workshop frames due to its strength, durability, and cost-effectiveness. It offers high load-bearing capacity and can withstand heavy machinery and equipment. Consider the grade of steel based on the specific requirements of the workshop, such as the expected loads and environmental conditions.
Frame Design: The frame design should be tailored to the workshop's needs, including the desired layout, size, and height requirements. Consider the workflow, machinery placement, and potential future expansions when determining the frame design. Ensure the design allows for efficient use of space and smooth operation within the workshop.
Clear Span Capability: Clear span capability refers to the absence of interior columns or supports, allowing for open and flexible floor space. Determine if a clear span design is required for the workshop. This can enhance the workshop's functionality by providing unobstructed working areas and facilitating the movement of machinery and equipment.
Roofing and Cladding: Choose appropriate roofing and cladding materials for the workshop frame. Metal roofing and cladding systems are common due to their durability, weather resistance, and ease of maintenance. Consider insulation options to regulate temperature and minimize condensation within the workshop.
Load-Bearing Considerations: Determine the anticipated loads that the workshop frame will need to support. This includes the weight of machinery, equipment, and inventory, as well as any additional dynamic loads such as cranes or overhead hoists. Ensure that the frame is designed to withstand these loads and meet safety standards.
Engineering and Compliance: Work with experienced structural engineers to ensure the workshop frame design complies with local building codes and regulations. Engage professionals who specialize in industrial construction to ensure that the frame is structurally sound, meets safety requirements, and is optimized for the specific workshop needs.
Expansion Considerations: Consider future expansion possibilities when designing the workshop frame. This includes evaluating the potential need for additional space, machinery, or storage areas. Incorporate design features that allow for easy expansion, such as modular construction or adjustable connections.
Product Parametes
|
Steel structure building
|
|
1. Primary Framing
|
Painted or hot-galvanized H column and beam
|
|
2. Secondary Framing
|
Galvanized Z and C sections purlin
|
|
3. Roof and Wall panels
|
Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
|
|
4. Steel Decking Floor
|
Galvanized steel decking board
|
|
5.Structural subsystem
|
Canopies, fascias, partitions, etc.
|
|
6.Mezzanines, Platforms
|
Painted or galvanized H beam
|
|
7.Other Building Accessories
|
Sliding doors, roll up doors, aluminium windows, louvers, etc.
|
|
Drawings & Quotation:
|
|
(1) Customized design is welcomed.
|
|
(2) In order to provise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.
We will quote for you promptly.
|
Company Profile
Shandong Juxin Steel Structure Co., Ltd. is specialized in building steel structure design, manufacturing, installation, maintenance as one of the professional enterprises. Integrated design, manufacturing, installation in one, with H-shaped steel; C, Z steel; Bolt ball joint grid; Color light roof panel, wall panel; office integrated activity room and other production lines, has its own professional design office, professional processing equipment, professional testing equipment, professional quality inspection personnel, professional manufacturing base, professional production and technical personnel, professional installation team and perfect operation, after-sales service team.
Product Description
Our advantage
Certifications

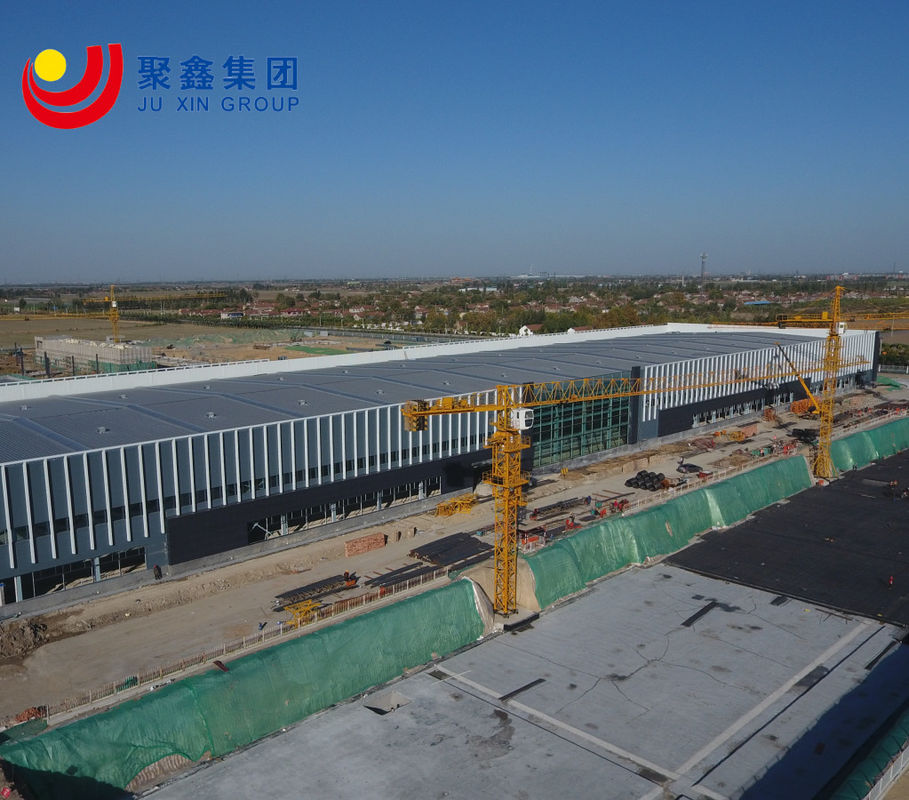

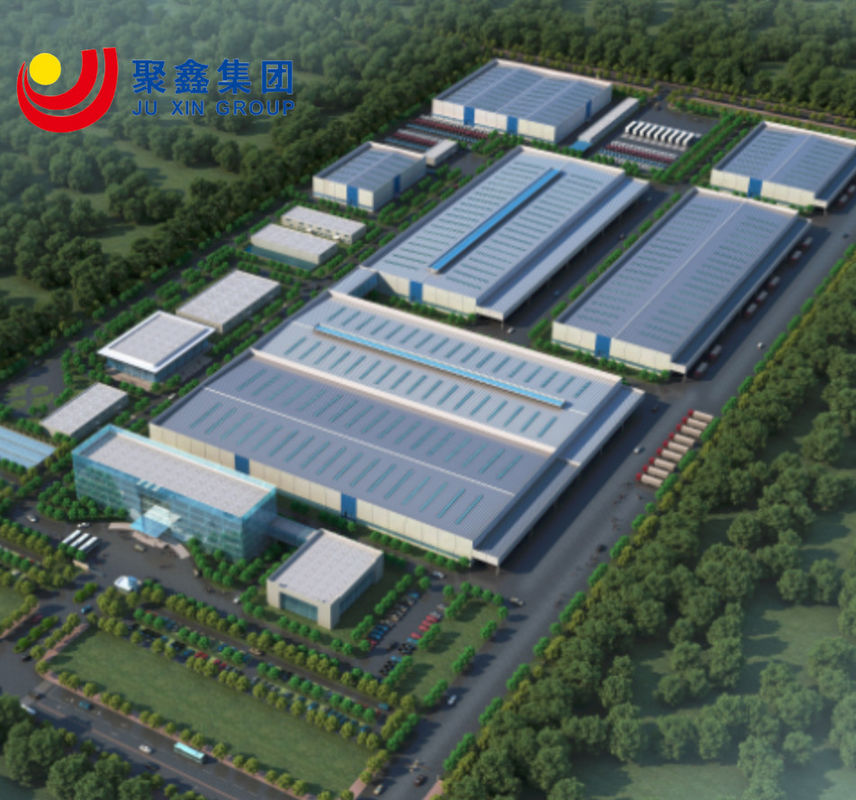

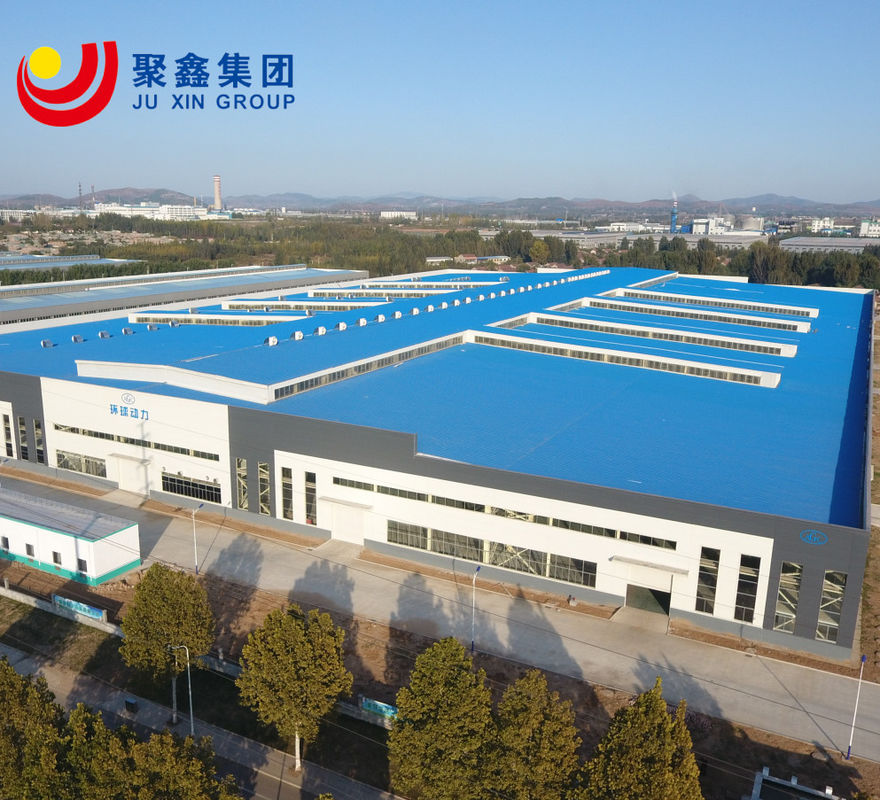

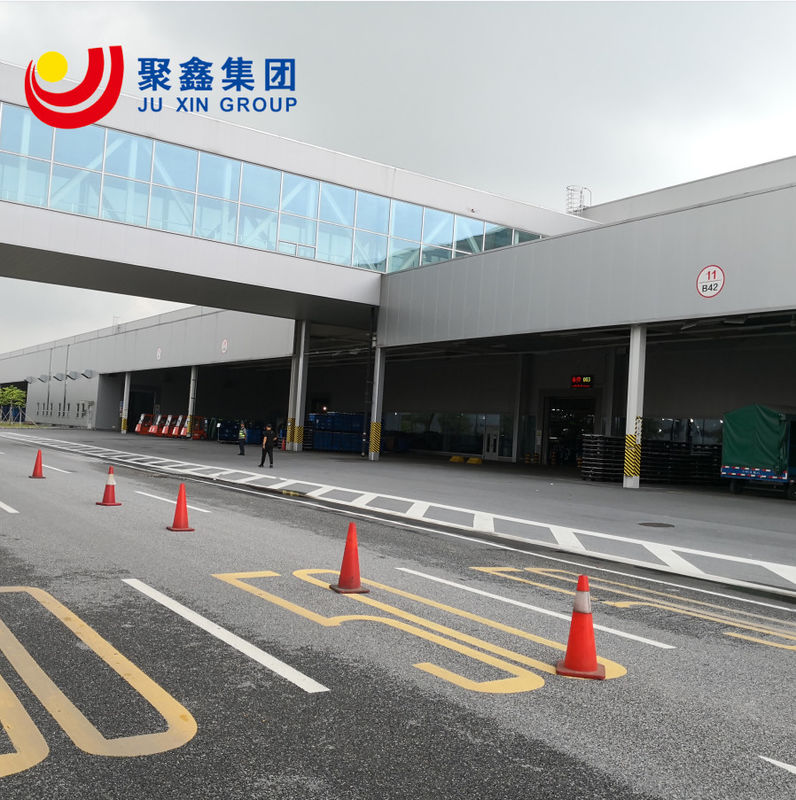

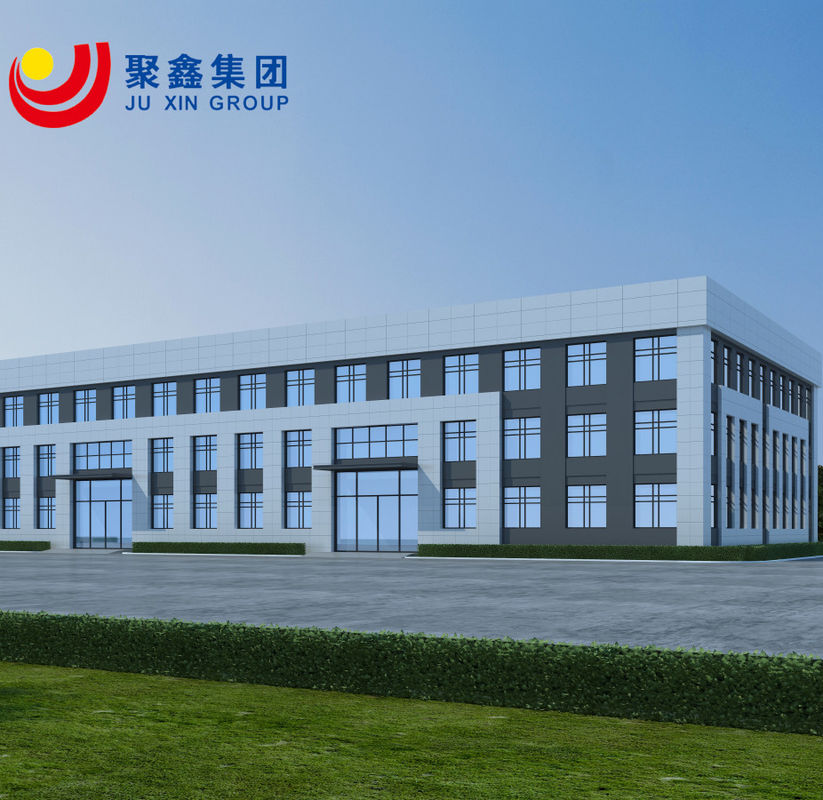

Customer Case
We will consider the standards and specifications of each region. Therefore, by choosing us, you will obtain steel structure products that fully comply with the legislative requirements of your country/region. At the same time, we have many experiences in industrial buildings, public buildings, bridge buildings, marine engineering, livestock building, high-rise buildings, aerospace, military construction, and other fields.
We will carefully study your specific needs and specifically design and manufacture load-bearing structures suitable for your project.
FAQ
Q1: How long does it take to get my building?
A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)
Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.
Q3: Why choose JU XIN?
A: At JU XIN, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 20 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.
Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.
Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.
Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.
Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.
Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.
Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.
