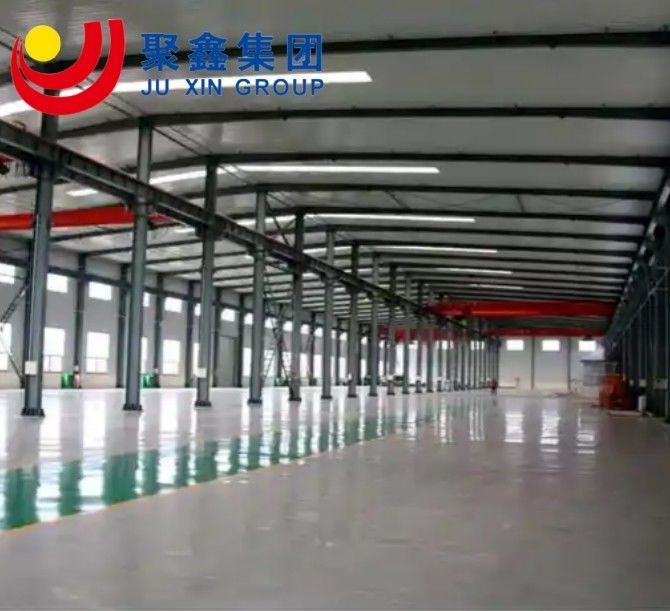

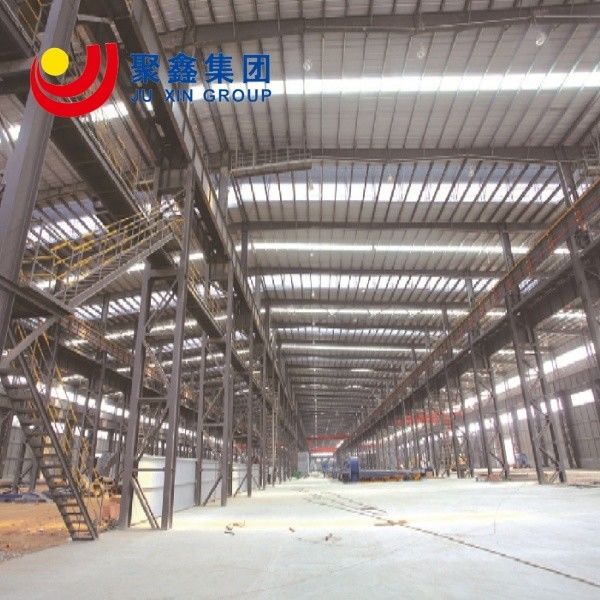

Portal Frame Prefab Steel Structure Workshop
Portal Frame Design: The portal frame is a widely used structural system for industrial buildings, especially workshops, where large, open, and column-free interior spaces are needed. This design consists of vertical columns that are connected at the top by horizontal beams forming rigid rectangular portals. The frames are designed to transfer load directly to the foundations, providing a stable and strong structure that can withstand lateral forces, such as wind and snow loads.
Prefab Steel Structure: Prefab, short for prefabricated, means that the steel components of the workshop are manufactured off-site in a factory-controlled environment. This includes the columns, beams, purlins, girts, and any other necessary structural parts. They are then transported to the construction site where they are assembled, bolted or welded together. Prefabrication allows for faster construction, better quality control, and reduced waste compared to traditional on-site construction methods.
Workshop Application: This type of building is commonly used for workshops because of its versatility and adaptability. Workshops that utilize prefab steel portal frames can house a wide range of industrial activities, including manufacturing, fabrication, repair, storage, and assembly lines. The open interior space allows for the placement of heavy machinery and equipment, with ample room for maneuvering and operation. Additionally, the steel structure provides a sturdy base for mounting overhead cranes and other utilities required in industrial settings.
Product Parametes
|
Steel structure building
|
|
1. Primary Framing
|
Painted or hot-galvanized H column and beam
|
|
2. Secondary Framing
|
Galvanized Z and C sections purlin
|
|
3. Roof and Wall panels
|
Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU)
|
|

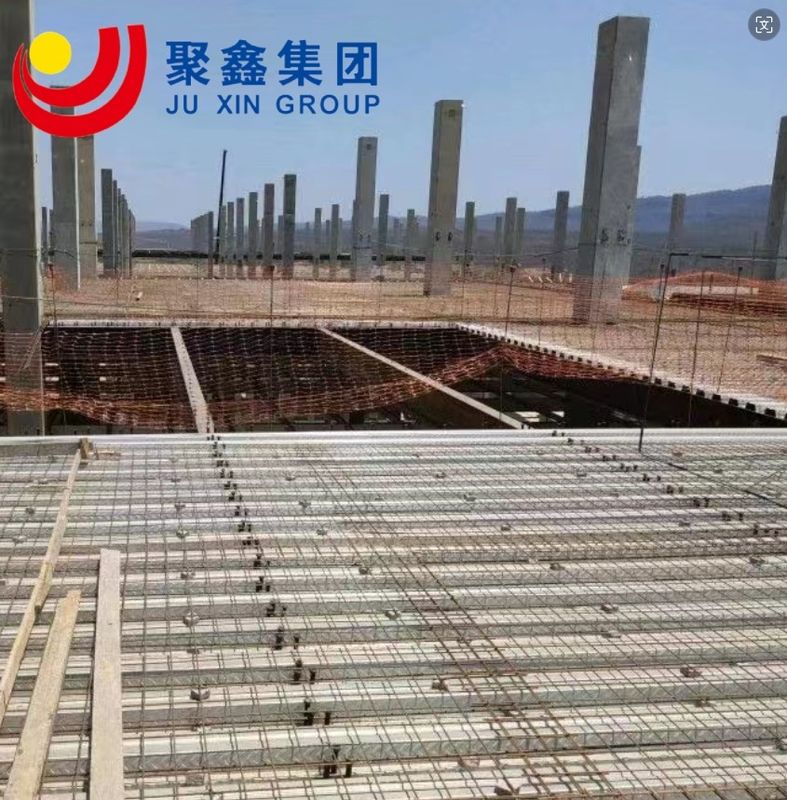

4. Steel Decking Floor
|
Galvanized steel decking board
|
|
5.Structural subsystem
|
Canopies, fascias, partitions, etc.
|
|
6.Mezzanines, Platforms
|
Painted or galvanized H beam
|
|
7.Other Building Accessories
|
Sliding doors, roll up doors, aluminium windows, louvers, etc.
|
|
Drawings & Quotation:
|
|
(1) Customized design is welcomed.
|
|
(2) In order to provise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.
We will quote for you promptly.
|
Company Profile
Shandong Juxin Steel Structure Co., Ltd. is specialized in building steel structure design, manufacturing, installation, maintenance as one of the professional enterprises. Integrated design, manufacturing, installation in one, with H-shaped steel; C, Z steel; Bolt ball joint grid; Color light roof panel, wall panel; office integrated activity room and other production lines, has its own professional design office, professional processing equipment, professional testing equipment, professional quality inspection personnel, professional manufacturing base, professional production and technical personnel, professional installation team and perfect operation, after-sales service team.
Product Description
Our advantage
Certifications

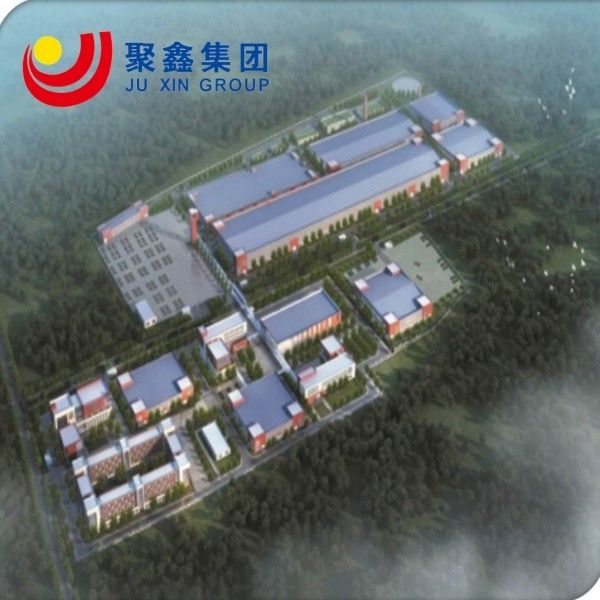

Customer Case
We will consider the standards and specifications of each region. Therefore, by choosing us, you will obtain steel structure products that fully comply with the legislative requirements of your country/region. At the same time, we have many experiences in industrial buildings, public buildings, bridge buildings, marine engineering, livestock building, high-rise buildings, aerospace, military construction, and other fields.
We will carefully study your specific needs and specifically design and manufacture load-bearing structures suitable for your project.
FAQ
Q1: How long does it take to get my building?
A: Lead time is vary, but typically 2 weeks of drawings and 6-8 weeks for delivery(depending on complexity)
Q2: What are the benefits of steel construction?
A: 1-Durable and with long lifespan.
2-Short construction period than concrete and wooden building.
3-Low cost and reusable.
4-High strength and light weight, has good seismic performance.
5-Widely used for multi-purpose buildings.
Q3: Why choose JU XIN?
A: At JU XIN, the customer is the first priority. We don't pull any gimmicks. We are veteran owned and operated business, unmatched in customer service. We have more than 20 years of metal building experience. We are also very reputable manufacture and can answer your questions regarding any tape of construction project.We care about your needs and value your business.
Q4: How can l get the quotation of the project?
A: lf you have the drawing, we can offer you our quotation accordingly. lf youhave no design, our engineer will design for you to confirm. And then offer you a quotation.
Q5: Do you offer designing service for us?
A: Yes, we can provide full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (X steel) and etc. We can design complex industrial building like office building,
supermarket, auto dealer shop, shipping mall, hotel etc.
Q6: Do you provide samples?
A: Yes, we could offer the sample for free but do not pay for the cost of transportation.
Q7: What is your terms of payment ?
A: L/C, T/T, and Western Union.
Q8: How about your quality control?
A: We have our own professional quality control team with rich experience and advanced inspection equipment. Also we are willing to accept any other the third inspection part to control.
Q9: Can you provide the installation help?
A: We will provide detailed instruction photos and videos to you. If it is necessary,we will send professional engineers to do the construction guidance, and some skilled workers to help for installation. However, the visa fee, air tickets,accommodation, wages will be provided by buyers.
